The DBY New Type Electric Diaphragm Pump offers efficient, leak-free fluid transfer with durable construction, low energy consumption, and quiet operation for industrial applications.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:

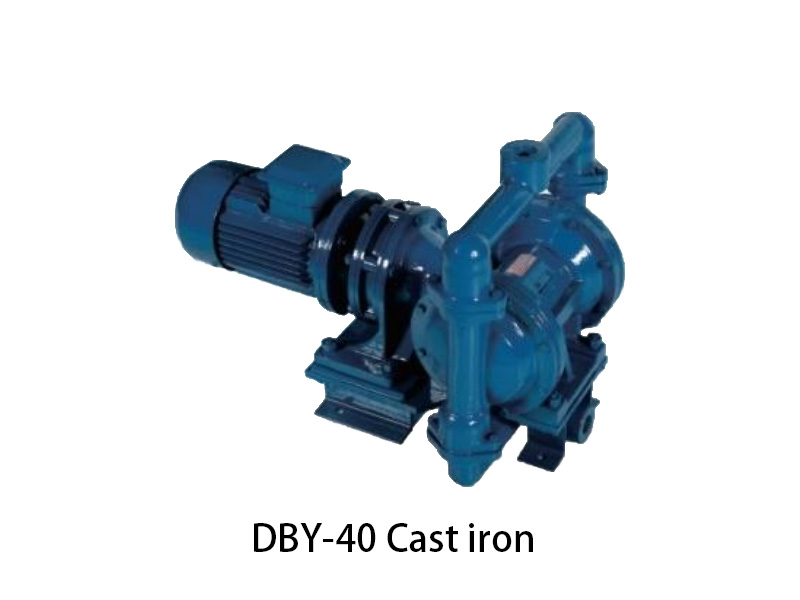

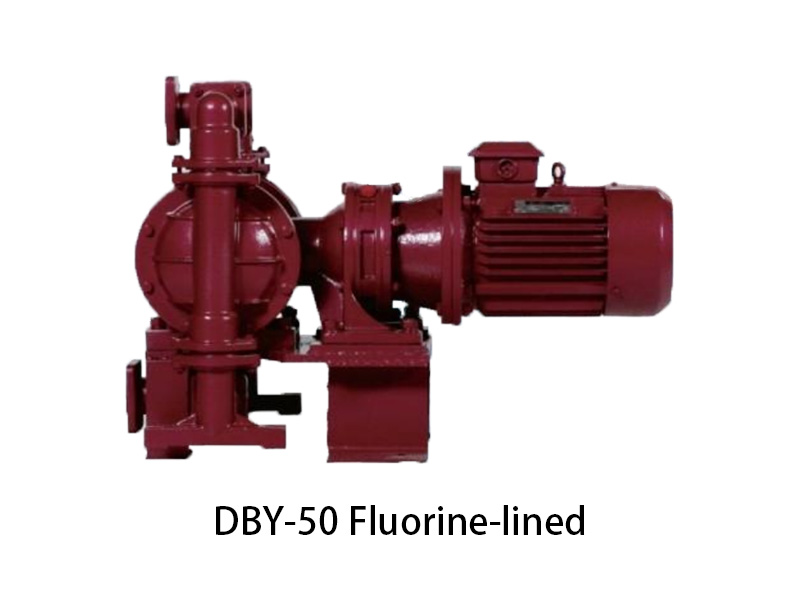

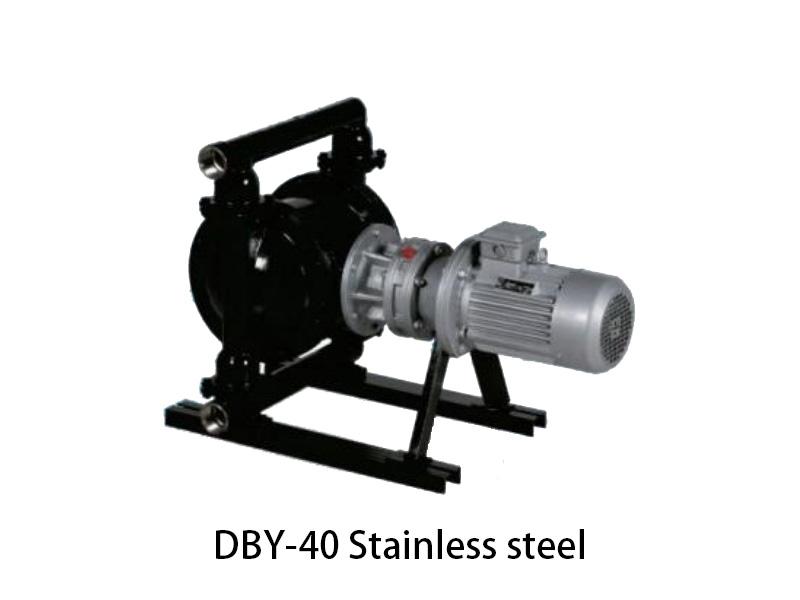

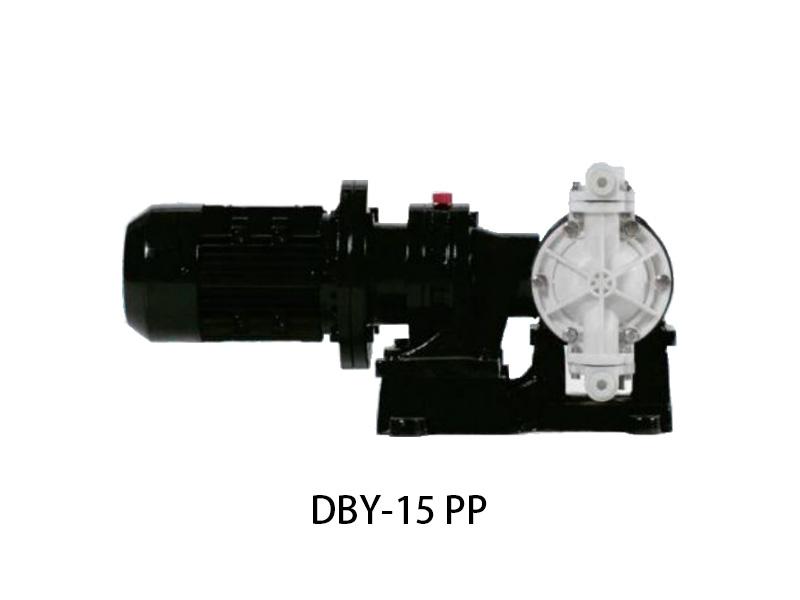

Stainless steel/Cast iron/Fluorine-lined/PP
The electric diaphragm pump is a new type of pump. In recent years, due to breakthrough advancements in diaphragm materials, an increasing number of industrialized countries have adopted this type of pump to replace certain centrifugal pumps and screw pumps in industries such as petrochemicals, ceramics, and metallurgy.
Product Overview
Our factory currently produces diaphragm pumps in two models: the YGB hydraulic-driven type and the DBY electric-driven type. The product designs are based on reference samples from the American company ABEL and have been certified by the Ministry of Coal Industry.The DBY-type diaphragm pump is suitable for low-pressure applications, where the outlet pressure is ≤3 kgf/cm².The YGB-type is suitable for applications with an outlet pressure of ≥4 kgf/cm².This manual pertains to the DBY-type diaphragm pump.
1.Various toxic, flammable, and volatile liquids.
2.Various strong acids, alkalis, and highly corrosive liquids.
3.Capable of conveying high-temperature media up to 150°C.
4.Serves as a pressure delivery device for various filter presses.
5.Hot water recovery and circulation.
6.Oil tankers, oil depots, and oil loading/unloading.
7.Pumping pickles, jam, mashed potatoes, chocolate, etc.
8.Pumping paint, gum, pigments, and adhesives.
9.Various ceramic glazes, cement grout, mortar, and slurry.
10.Various rubber solutions, latex, organic solvents, and fillers.
11.Clearing ship tanks and pumping out bilge water and residual oil for oil tankers and barges.
12.Hops and fermenting powder slurry, syrup, and molasses.
13.Pumping sewage and sediments from mines, tunnels, and sewers.
14.Handling and conveying various special media.
Performance specification
| Type | Flow (m³/h) | Suction Lift (m) | Head (m) | Outlet Pressure (kgf/c㎡) | Motor Speed/Power (r/min/kW) | Pump Inlet/Outlet Size |
| DBY-10 | 0.5 | 3 | 30 | 3 | 1450/0.55 | 1/2" thread |
| DBY-15 | 0.75 | 3 | 30 | 3 | 1450/0.55 | 1/2" thread |
| DBY-25 | 3.5 | 4 | 30 | 3 | 1450/1.5 | 1" thread/25mm flange |
| DBY-40 | 4.5 | 4 | 30 | 3 | 1450/1.5 | 1" thread/40mm flange |
| DBY-50 | 6.5 | 4.5 | 30 | 3 | 1450/2.2 | 50mm flange |
| DBY-65 | 8 | 4.5 | 30 | 3 | 1450/2.2 | 65mm flange |
| DBY-80 | 16 | 5 | 30 | 3 | 1450/4 | 80mm flange |
| DBY-100 | 20 | 5 | 30 | 3 | 1450/4 | 100mm flange |

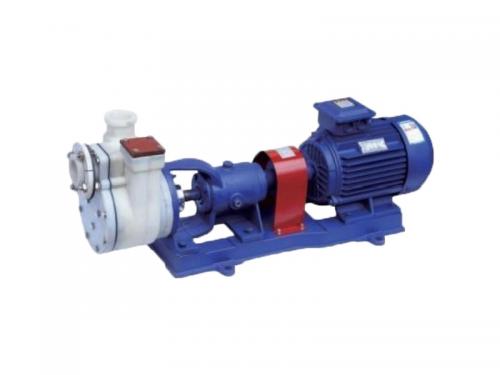

The FZB fluoroplastic alloy self-priming pump offers excellent corrosion resistance, high efficiency, and self-priming capabilities, ideal for harsh chemical environments.
Details
It features a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Details

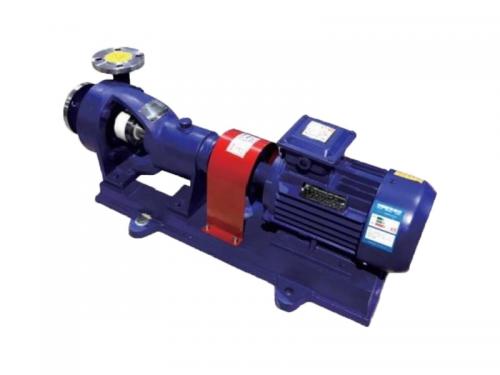

The FB single - stage single - suction cantilever corrosion - resistant centrifugal pump is engineered with precision. It has high durability and excels in handling corrosive liquids, being a reliable fluid - handling choice.
