The UHB-ZK slurry pump offers superior corrosion and abrasion resistance, ideal for harsh industrial applications. Durable, efficient, and low-maintenance.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Cast iron/Stainless steelWorking Temp:
-20 to 80℃

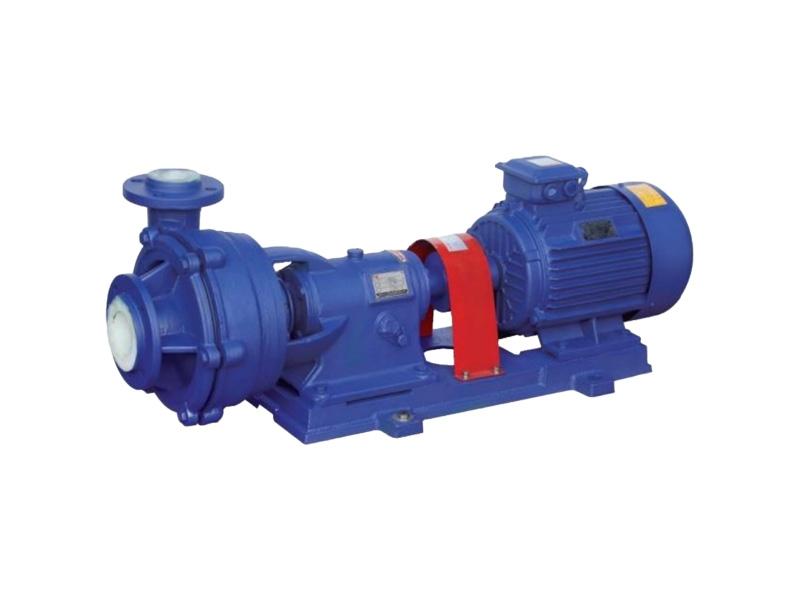

Product Overview
This series of pumps are single-stage, single-suction, cantilever-type centrifugal pumps with flow-passing components lined with ultra-high molecular weight polyethylene (UHMWPE). This material is the latest generation of corrosion-resistant and wear-resistant engineering plastics for pumps, offering outstanding advantages, including exceptional corrosion resistance, impact resistance (particularly at low temperatures), creep resistance (environmental stress crack resistance), and excellent anti-corrosion properties among all plastics. The standout feature of these pumps is their versatility—a single pump can adapt to various working conditions, such as handling acidic or alkaline clear liquids, corrosive ore pulp in the metallurgical industry, and all types of wastewater in the environmental protection sector. These pumps are both corrosion-resistant and wear-resistant, making them suitable for a wide range of applications.
Product Features
Pumps of the UHB-ZK series are corrosion- and wear-resistant centrifugal pumps with a universal design, suitable for the treatment of both transparent liquids and sludge, including sulfonic acid (up to 80%), nitric acid (up to 50%), hydrochloric acid and alkali of any concentration With a steel body pump equipped with 8-20 mm UHMWPE, these pumps offer open or closed motors and dynamic sealing type K. They operate in a temperature range from -20 ° C to 80 ° C (expanded to 105 ° C with modified materials) and are available in inlet chambers from Ø32-250 mm, providing a speed of 5,600 m³/h with a maximum throughput of 50 m.

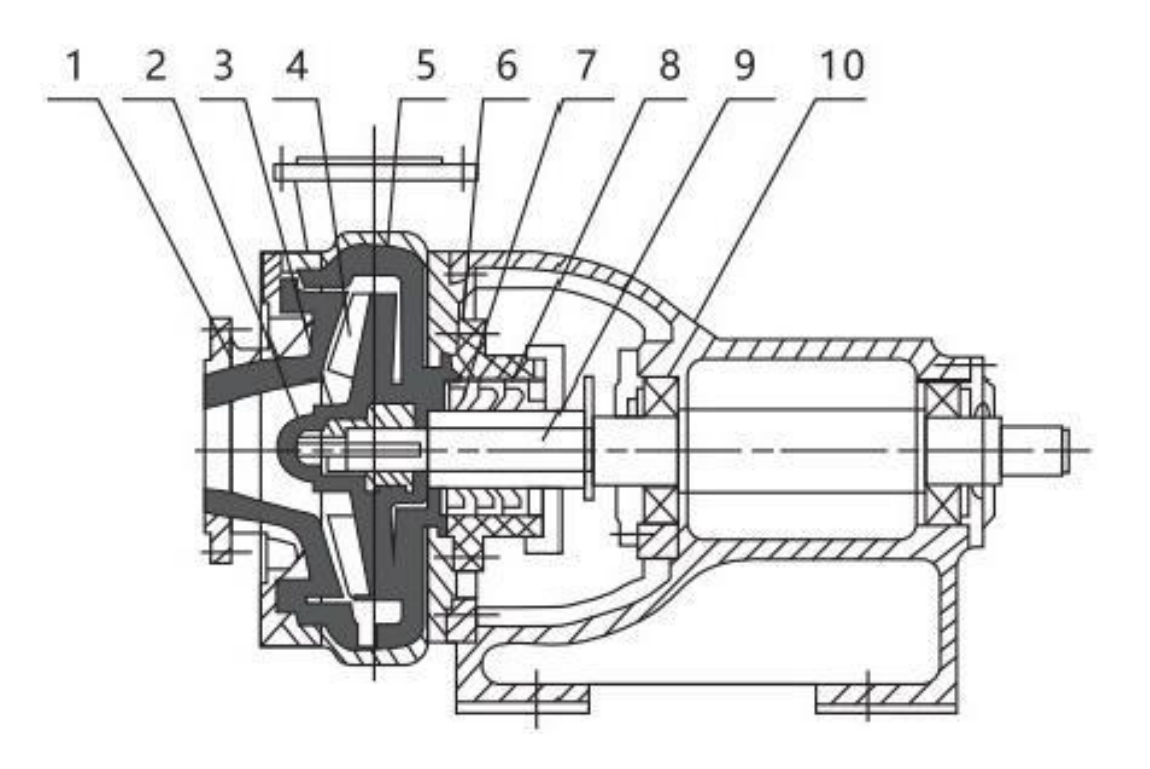

Structural diagram
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Pump Cover | Lock Nut | Anti-Rotation Nut | Impeller | Pump Body | Seal Box | Oil Seal | Shaft Sleeve | Main Shaft | Bearing Seat |
It features a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Details
Chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
Details
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
Details
Chemical centrifugal force pump, with simple structure, converts rotational energy into hydrodynamic energy to transport various liquids. Widely used in multiple industries, it is energy-saving, durable, and has a long service life.
Details
The CDL/CDLF vertical multistage centrifugal pump features stainless steel construction for corrosion resistance, high efficiency, and quiet operation. Ideal for water supply, pressure boosting, and industrial applications with compact design and reliable performance.
Details
The CQB Stainless Steel Magnetic Drive Centrifugal Pump is reliable, corrosion-resistant, and ideal for chemical, pharmaceutical industries.
Details
The FB single - stage single - suction cantilever corrosion - resistant centrifugal pump is engineered with precision. It has high durability and excels in handling corrosive liquids, being a reliable fluid - handling choice.
Details
The FP-type Reinforced Polypropylene Centrifugal Pump offers excellent chemical resistance and durability for harsh fluids. Its sturdy design ensures efficient, leak-proof operation in industrial and chemical applications.
Details
