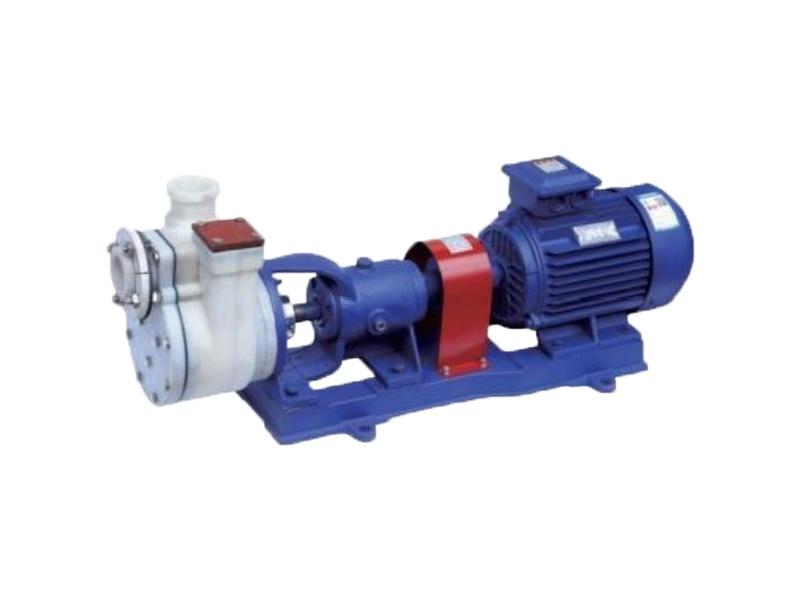

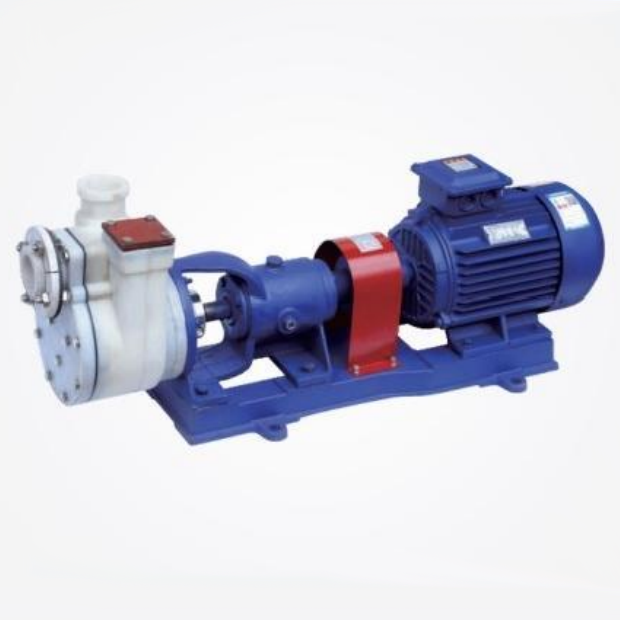

The FZB fluoroplastic alloy self-priming pump offers excellent corrosion resistance, high efficiency, and self-priming capabilities, ideal for harsh chemical environments.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Fluoroplastic/AlloyWorking Temp:
-85 to 120℃
Product Overview
Our company produces the FZB-type fluoroplastic metal composite self-priming pump, which is designed for long-term transportation of any concentration of various media—including acids, oxidants, and corrosive substances (excluding rapidly hardening crystalline media)—under temperature conditions ranging from -85°C to +120°C. The wetted parts are entirely made of fluoroplastic-reinforced polypropylene composite (a combination of polytetrafluoroethylene, perfluoroalkoxy polymer, and other fluoroplastics through optimized formulation) via molding and processing. This pump integrates the advantages of multiple fluoroplastics, offering exceptional corrosion resistance, high mechanical strength, resistance to aging, and no toxic decomposition.
The FZB Fluoroplastic Alloy Self-priming Pump is an advanced, high-efficiency fluid handling solution engineered with corrosion-resistant fluoroplastic alloy materials. It offers reliable self-priming performance, capable of efficiently transferring a wide range of liquids, including corrosive and abrasive fluids, in demanding industrial, chemical, wastewater treatment, and chemical processing applications. Its robust design ensures long service life and minimal maintenance, making it an ideal choice for challenging fluid transfer environments.

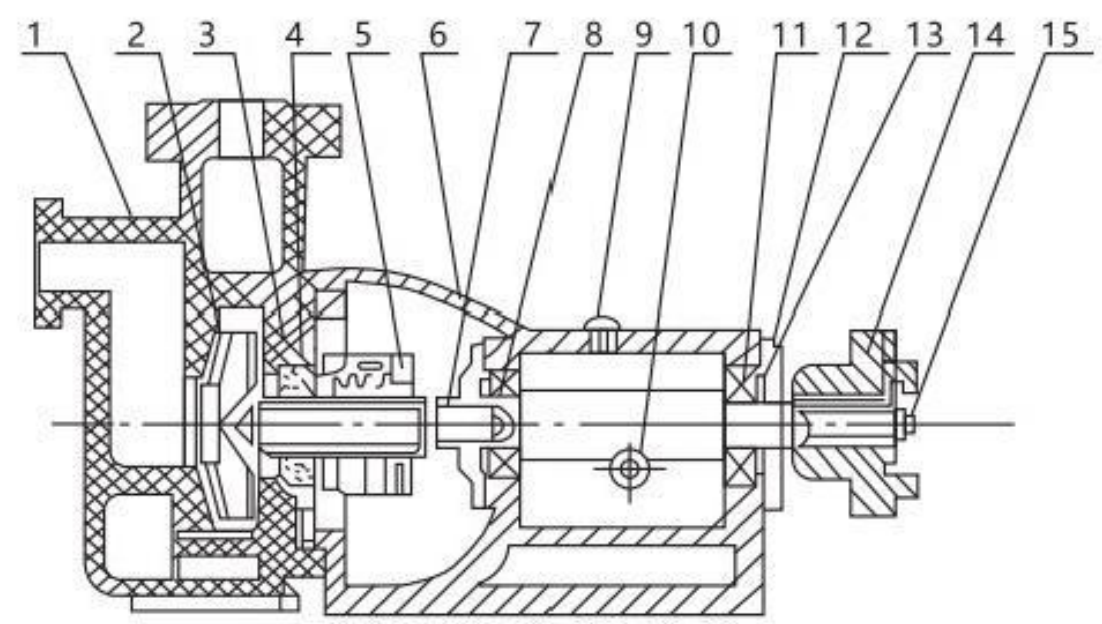

Structural Diagram
| 1 Pump Body | 2 Impeller | 3 Rear Cover | 4 Gland | 5 Sealing Component | 6 Bracket | 7 Pump Shaft | 8 Bearing |
| 9 Oil Cover | 10 Oil Sight Glass | 11 Bearing | 12 Bearing Gland | 13 Oil Seal | 14 Coupling | 15 Tightening Bolt |
| Type | Flow Rate (m³/h) | Head (m) | Inlet Diameter (mm) | Outlet Diameter (mm) | Motor Power (kW) | Speed (r/min) | Suction Lift (m) | Shaft Power (kW) | Efficiency (%) |
| 40FZB-25 | 8 | 25 | 40 | 32 | 2.2 | 2900 | 8 | 1.05 | 52 |
| 40FZB-30 | 8 | 30 | 40 | 32 | 3 | 2900 | 8 | 2.2 | 49 |
| 50FZB-25 | 12 | 25 | 50 | 40 | 3 | 2900 | 8 | 2.2 | 50 |
| 50FZB-30 | 12 | 30 | 50 | 40 | 4 | 2900 | 8 | 3.1 | 49 |
| 65FZB-25 | 25 | 25 | 65 | 50 | 5.5 | 2900 | 5.5 | 4.1 | 58 |
| 65FZB-30 | 25 | 30 | 65 | 50 | 7.5 | 2900 | 5.5 | 5.8 | 56.8 |
| 80FZB-25 | 40 | 25 | 80 | 65 | 7.5 | 2900 | 5.5 | 5.8 | 60 |
| 80FZB-30 | 40 | 30 | 80 | 65 | 7.5 | 2900 | 5.5 | 6.2 | 59.9 |
| 100FZB-25 | 100 | 25 | 100 | 80 | 18.5 | 2900 | 5 | 16.8 | 60 |
| 100FZB-30 | 100 | 30 | 100 | 80 | 22 | 2900 | 5 | 20 | 57 |
| 100FZB-40 | 100 | 40 | 100 | 80 | 30 | 2900 | 5 | 22.8 | 52 |
