The ZCQ self-priming magnetic drive pump offers leak-free operation, corrosion resistance, and efficient self-priming for safe chemical and pharmaceutical fluid transfer.
MOQ:
1Package:
CustomziedColor:
Customzied
Product overview

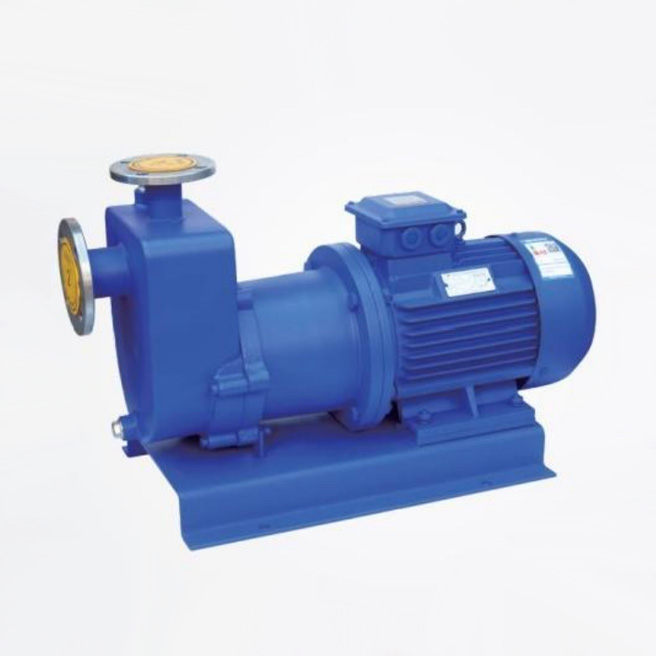

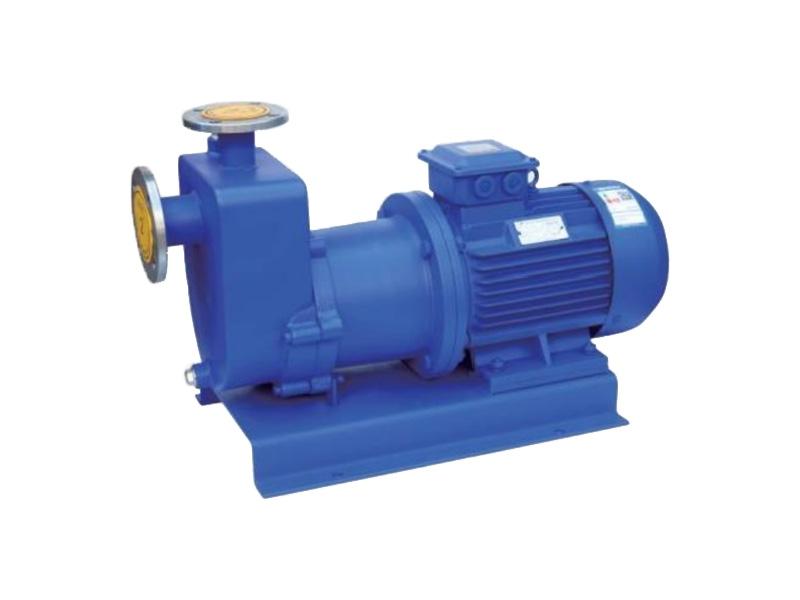

The ZCQ magnetic drive pump is an advanced leak-proof pump that enhances the CQ type magnetic drive pump through static seals and corrosion-resistant materials (stainless steel, aluminum ceramics, PTFE graphite). It eliminates conventional drainage problems, requires no foot valve or groundwater, and achieves a 4-meter self-suction lift that meets international standards 90. Exit.
Product advantages
ZCQ pump has compact structure, smooth appearance, small footprint, low noise, reliable operation and easy maintenance. Widely used in petroleum, chemical, pharmaceutical, galvanic, paint, food and research industries, it effectively processes acids, alkalis, oils, rare/valuable liquids, toxic substances, volatile liquids and cooling systems, especially for leakage-prone.

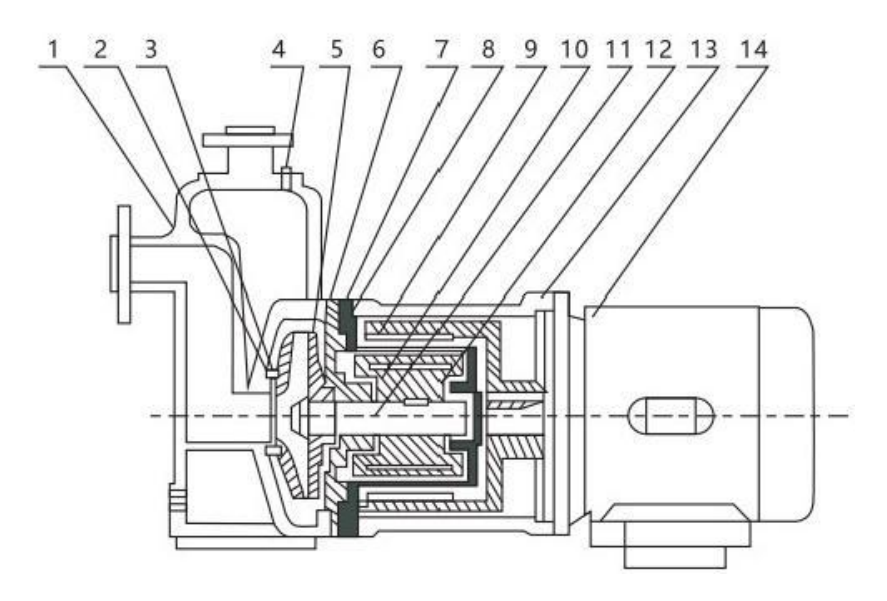

Structural diagram
1 | Pump Body | 5 | Impeller | 9 | Outer Magnet Assembly | 13 | Connecting Frame |
2 | Static Ring | 6 | Sealing Ring | 10 | Inner Magnet Assembly | 14 | Motor |
3 | Dynamic Ring | 7 | Partition Plate | 11 | Pump Shaft | ||
4 | Water Filling Bolt | 8 | Isolation Layer | 12 | Shaft Sleeve |
