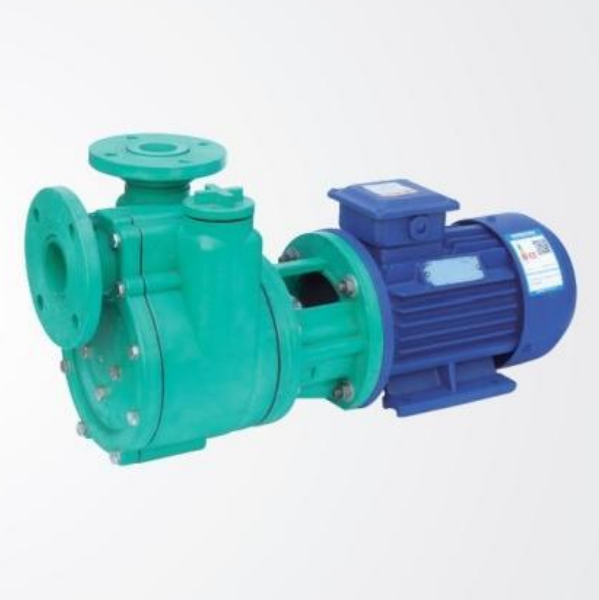

The FPZ reinforced polypropylene corrosion-resistant self-priming pump offers exceptional durability and chemical resistance. Ideal for harsh environments, it ensures efficient, reliable self-priming performance for various industrial applications.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
RPPWorking Temp:
14℃ to 80℃
The FPZ corrosion-resistant self-priming pump is manufactured through one-time plastic molding using reinforced polypropylene (RPP). It features high mechanical strength, excellent corrosion resistance, and a scientifically designed structure that is truly unique. Inside the pump chamber, there are a liquid suction chamber, a liquid storage chamber, a liquid-return check valve chamber, a gas-liquid separation chamber, and a return hole.Before the first startup, it only needs to be primed with the liquid. There is no need for repeated priming during subsequent operations. A submergible valve is installed on the suction pipe. During operation, the mechanical seal does not require additional cooling water. It is easy and safe to operate without any leakage. It is the best alternative to submersible pumps and is suitable for transporting various corrosive media at temperatures ranging from 14°C to 80°C (RPP).
Product Overview
FPZ Corrosion-Resistant Self-Priming Pump (PP Enhanced) – High-efficiency, durable self-priming pump with enhanced polypropylene construction for superior chemical resistance, ideal for aggressive fluids.

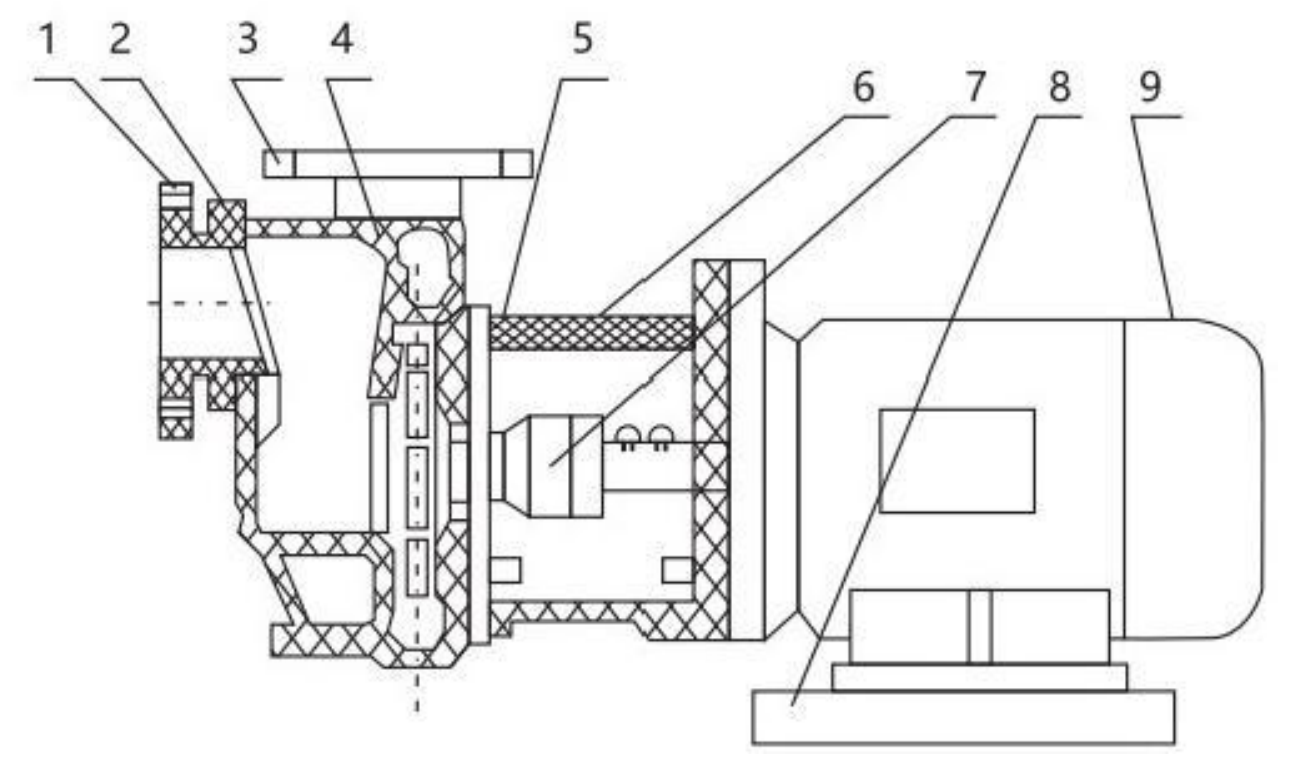

Structural diagram
| 1 | Inlet Flange |
| 2 | Front Pump Cover |
| 3 | Outlet Flange |
| 4 | Pump Casing |
| 5 | Impeller Assembly |
| 6 | Bracket |
| 7 | Mechanical Seal |
| 8 | Base Block |
| 9 | Motor |
| Type | Flow Rate (m³/h) | Head (m) | Speed (r/min) | Self-priming Height (m) | Self-priming Time (s/m) | Power (kW) | Inlet/Outlet Diameter (mm) |
| 32FPZ-11 | 4 | 11 | 2900 | 3 | 60 | 0.75 | 32/25 |
| 40FPZ-18 | 10 | 18 | 4 | 60 | 1.5 | 40/32 | |
| 50FPZ-22 | 15 | 22 | 4 | 60 | 2.2 | 50/40 | |
| 50FPZ-25 | 18 | 25 | 4 | 60 | 3 | 50/40 | |
| 65FPZ-28 | 22 | 28 | 4 | 60 | 4 | 65/50 | |
| 65FPZ-32 | 28 | 32 | 4 | 60 | 5.5 | 65/50 | |
| 80FPZ-30 | 50 | 30 | 4 | 60 | 7.5 | 80/65 | |
| 100FPZ-32 | 100 | 32 | 4 | 60 | 11 | 100/80 |
The ZW series self-priming non-clogging sewage pump is a newly structured product successfully developed on the basis of repeated research on similar domestic and foreign technologies.
Details
The Industrial Self Priming Centrifugal Pump efficiently transfers various liquids without manual priming. Ideal for industrial applications, it offers high performance, reliability, and easy maintenance, ensuring continuous and smooth operation.
Details
The CYZ - A self - priming oil pump is efficient. It features reliable self - priming, stable performance, and is suitable for various oil - transferring tasks.
Details
Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.
Details

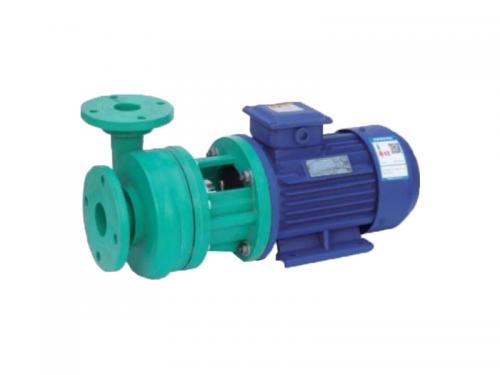

The FP-type Reinforced Polypropylene Centrifugal Pump offers excellent chemical resistance and durability for harsh fluids. Its sturdy design ensures efficient, leak-proof operation in industrial and chemical applications.
