Vertical Multistage Pipeline Pump

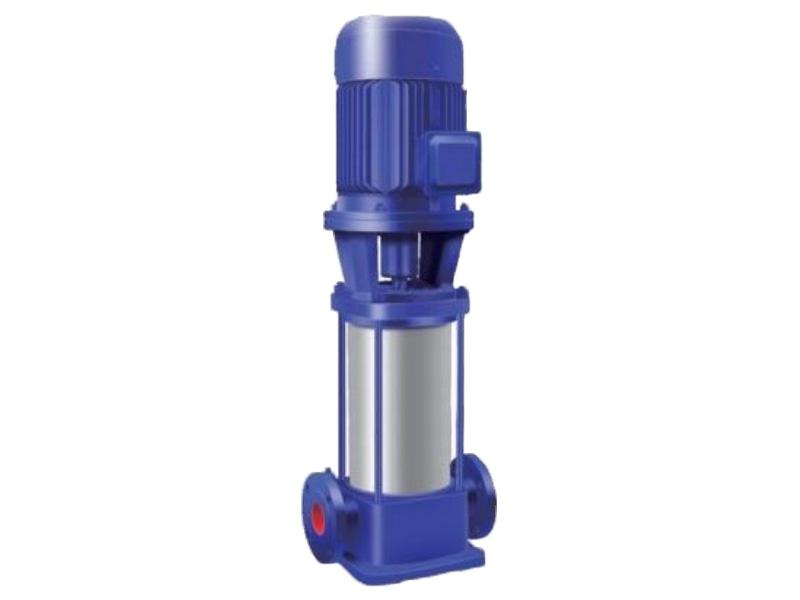

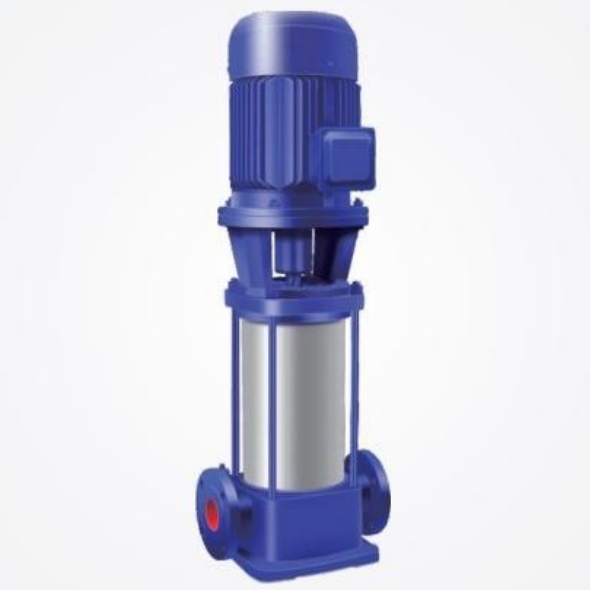

GDL Vertical Multistage Pipeline Pump

Vertical Multistage Pipeline Pump

GDL vertical multistage pipeline pump ensures high-efficiency fluid transport, ideal for pressure boosting in industrial & water supply systems.

  • MOQ:

    1
  • Package:

    Customzied
  • Color:

    Customzied
  • Material:

    Stainless Steel
  • Working Temp:

    ≤100℃
  • Working Pressure:

    ≤1.6MPa



Product Features
This pump is the latest model featuring energy efficiency, compact footprint, easy installation, and stable performance. The casing is made of high-quality 1Cr18Ni9Ti stainless steel, and the shaft seal employs wear-resistant mechanical sealing for zero leakage and extended service life. Hydraulic balance is adopted to address axial force, ensuring smooth and quiet operation. Its installation conditions surpass those of DL-type pumps, allowing for straightforward integration into any horizontal pipeline section.It fully meets the water supply, drainage, and firefighting needs of high-rise buildings, deep mines, and similar applications. Ideal for transporting cold/hot water or general media with physical and chemical properties similar to water, this pump is the optimal choice for a wide range of industries.Operating Temperature: T ≤ 100°C,Pressure: PN ≤ 1.6 MPa (16 kg/cm²).

Product Overview

The GDL Vertical Multistage Pipeline Pump is a high-efficiency, space-saving pump designed for high-pressure fluid transport in pipelines. Its multistage impeller design ensures stable performance, making it ideal for water supply, industrial circulation, and boiler feed systems. Compact, durable, and low-maintenance.

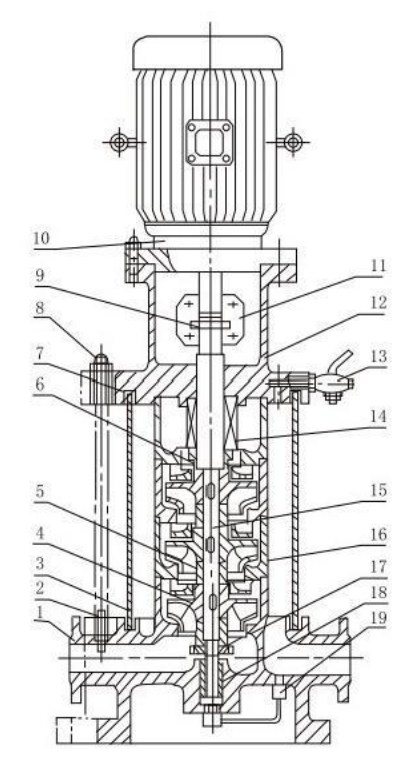

Structural Diagram

No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Component Pump Body Tension Bolt Outer Cylinder Impeller Impeller Bushing Shaft Sleeve Gasket Nut Pin Motor Coupling Connection Seat Nozzle Mechanical Seal Shaft Middle Section Shaft Sleeve Nut Bearing Return Pipe Assembly
