The THZWF fluorine axial flow pump is a high-quality pump specifically engineered for fluorine-related applications. Leveraging advanced technology, it boasts high efficiency and stable performance. This pump is capable of effectively handling fluorine-containing fluids, ensuring precise control of flow and head.
To ensure long-term reliable operation in diverse industrial processes, the pump is constructed using corrosion-resistant materials.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
SteelWorking Temp:
-30 to 150 ℃Working Pressure:
1.6 MPa
Product overview
The THZWF fluorine-lined axial flow pump represents an innovative type of axial flow pump that has been independently developed and meticulously designed by our company. It exhibits outstanding resistance to acids, high temperatures, corrosion, and wear.
This pump has an extensive application range and is especially well-suited for handling corrosive media characterized by a high solid content, strong acidity, and elevated temperatures.
Product advantages
1. In line with GB/T13008 and the non-metallic pump process, our company produces a fluorine-lined axial flow pump of the splint graphite type. This pump showcases remarkable properties such as high-temperature resistance, corrosion resistance, wear resistance, high strength, high efficiency, and energy-saving capabilities. As a result, it can be safely operated for an extended duration within a temperature range spanning from -30℃ to 150℃.
2. The flow passage components, including the pump body and impeller, are fabricated using materials such as PTFE, ETFE, and PFA. The specific choice of material is determined based on various operating conditions.
3. The pump is outfitted with a cartridge-type double-face mechanical seal, which exhibits excellent resistance to high temperatures, corrosion, and wear. This enables the pump to handle media containing particles or crystals. Moreover, the sealing arrangement and flushing scheme can be customized in accordance with the API682 standard.
4. The moving and static rings of the mechanical seal are constructed from crystalline silicon carbide or HC276 alloy. These materials are characterized by their high strength, wear resistance, toughness, and corrosion resistance, thereby effectively prolonging the service life of the pump.
Material List
| Part | Material | Part | Material | Part | Material |
| ① Impeller nut | Steel lined fluoroplastic/ PFA | ⑥ Pump cover | Steel lined fluoroplastic/ PFA | ⑪ Front bearing | Gcr15 |
| ② Impeller | Steel lined fluoroplastic/ PFA | ⑦ Seal ring | Perfluoroether/PTFE nng | ⑫ Bearing box | HT200/ZG |
| ③ Axle sleeve | Steel lined fluoroplastic/ PFA | ⑧ Mechanical seal | Containerized water flushing machinery | ⑬ Rear bearing | Gcr15 |
| ④ Pump shaft | 45# steel quenching and tempering | ⑨ Backet | HT200/ZG | ⑭ Rear axle pressure cover | A3/ZG |
| ⑤ Pump body | Steel lined fluoroplastic/ PFA | ⑩ Front axle pressure cover | A3/ZG | ⑮ Support board | A3/ZG |
Structural diagram
Performance range
Design pressure :1.6MPa; Caliber :250~1000mm; Flow :300~12000m³/ h ; Lift :3~5m; Power :7.5~250kw;
Applicable temperature :-30℃~150℃.
Product application
It is applicable to processes such as diaphragm caustic soda production, phosphoric acid production, vacuum salt making, calcium lactate manufacturing, aluminum oxide production, calcium chloride processing, ammonium chloride synthesis, sodium chlorate production, sugar refining, molten salt applications, papermaking, and wastewater treatment, among others. In particular, it is well-suited for handling high-temperature hydrochloric acid, high-temperature sulfuric acid, high-temperature mixed acids, and strong acid high-temperature media.
Others
The axial-flow pump belongs to the category of pumps. It features an impeller that rotates around the axis. This impeller pushes water forward in the axial direction. As a result, the axial-flow pump is well-suited for applications involving large flow rates and low heads, such as irrigation and drainage systems.
Details
The no-leakage fluorine-lined magnetic pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.
Details
Spherical block hole type graphite heat exchanger, a highly durable and efficient heat transfer apparatus commonly employed in various industrial sectors such as chemical, petrochemical, and pharmaceutical industries for precise temperature control and effective heat exchange.
Details
The FPZ reinforced polypropylene corrosion-resistant self-priming pump offers exceptional durability and chemical resistance. Ideal for harsh environments, it ensures efficient, reliable self-priming performance for various industrial applications.
Details
The TCH no-leakage stainless steel magnetic pump represents an advanced type of industrial pump. It is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.
Details
The axial-flow pump belongs to the category of pumps. It features an impeller that rotates around the axis. This impeller pushes water forward in the axial direction. As a result, the axial-flow pump is well-suited for applications involving large flow rates and low heads, such as irrigation and drainage systems.
Details
The TCD no-leakage multistage magnetic pump, featuring a multistage structure, is capable of generating high pressure. Its magnetic coupling ensures leak-free operation, making it an excellent option for precise fluid handling in a wide range of fields.
Details

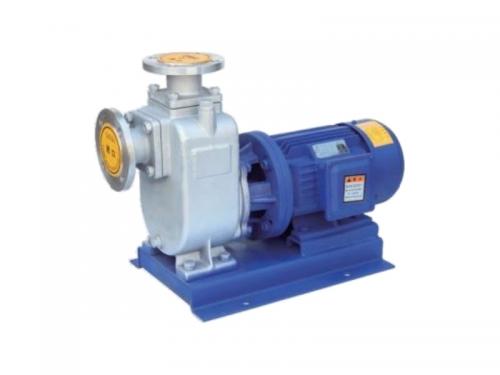

The ZXL direct-coupled self-priming centrifugal pump enables efficient, maintenance-free fluid transfer with automatic priming, ideal for industrial and agricultural applications.
