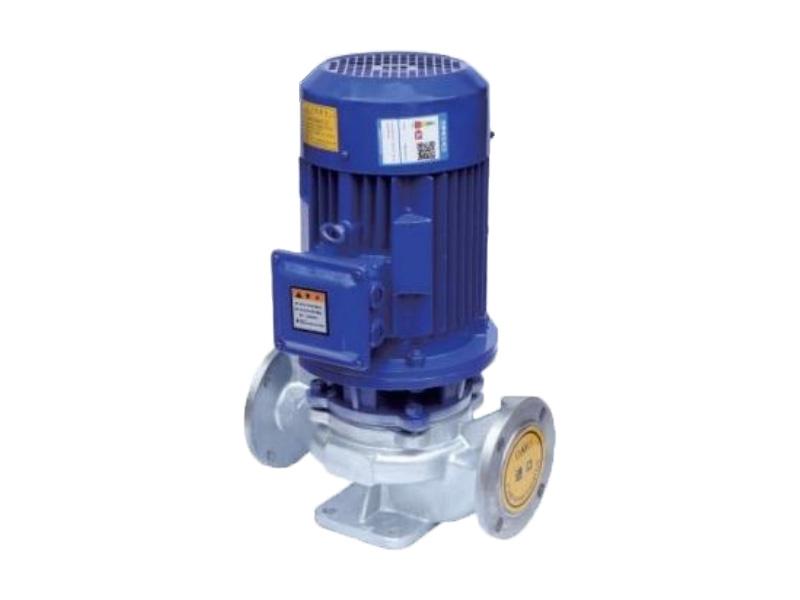

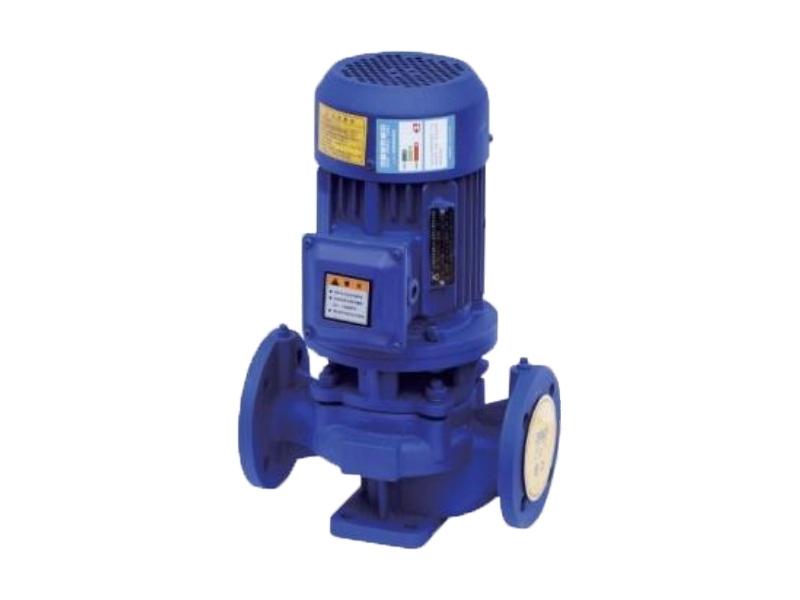

The ISG vertical in-line centrifugal pump is a compact, energy-efficient single-stage pump designed for HVAC, water supply, and industrial systems, offering quiet operation, easy installation, and reliable performance.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Cast iron/Stainless steelWorking Temp:
＜40℃
Product Overview
The ISG series of single-stage single-suction pipeline centrifugal pumps are designed by our technical team in collaboration with domestic pump experts, incorporating advanced hydraulic models. Based on the performance parameters of IS-type centrifugal pumps, these products feature an ingeniously optimized design built upon conventional vertical pumps. Additionally, to accommodate varying temperatures and media, the ISG series has been further developed into specialized models, including pumps for hot water, high-temperature applications, corrosive chemical fluids, and oil. This product line boasts high efficiency, energy savings, low noise, and reliable performance.
Operating Conditions
The ISG series pumps are designed to operate under the following conditions: The suction pressure must be less than 1.0 MPa, and the maximum system working pressure should not exceed 1.6 MPa (calculated as pump inlet pressure plus pump head). The hydrostatic test pressure for the pump is 2.5 MPa. Customers must specify the system working pressure when placing an order. If the system pressure exceeds 1.6 MPa, this must be clearly indicated so that the manufacturer can use cast steel materials for the pump's flow-passing components and connection parts to ensure durability under higher pressures.The pumps are suitable for environments where the ambient temperature does not exceed 40°C and the relative humidity remains below 95%.Regarding the conveyed medium, the solid particle content should not exceed 0.1% by volume, with particle sizes larger than 0.2 mm. If the medium contains fine particles, customers must inform the manufacturer at the time of ordering so that wear-resistant mechanical seals can be provided to enhance the pump's service life under such conditions.
Product Features

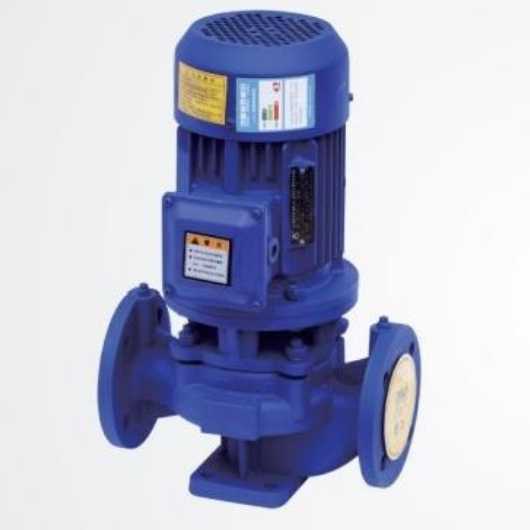

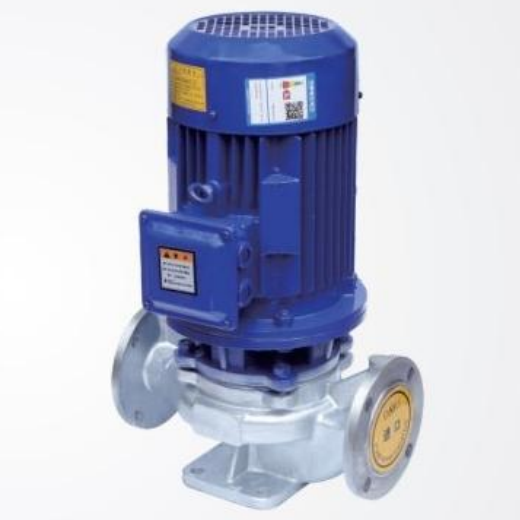

1.The pump features a vertical structure with inlet and outlet ports of the same diameter, aligned on the same centerline. It can be installed in pipelines like a valve, offering a compact and aesthetically pleasing design with a small footprint, reducing construction costs. When equipped with a protective cover, it can also be used outdoors.
2.The impeller is directly mounted on the extended shaft of the motor, ensuring a short axial dimension and a compact structure. The optimized bearing arrangement between the pump and motor effectively balances radial and axial loads generated during operation, resulting in smooth performance with minimal vibration and noise.
3.The shaft seal employs mechanical seals or a combination of mechanical seals, utilizing imported titanium alloy sealing rings, medium-temperature-resistant mechanical seals, and hard alloy materials for enhanced wear resistance and extended seal lifespan.
4.Installation and maintenance are convenient, as there is no need to disassemble the pipeline system. Simply removing the pump coupling base nut allows the entire rotor assembly to be extracted.
5.The pump can operate in series or parallel configurations to meet varying flow and head requirements.
6.It supports both vertical and horizontal installation to accommodate different pipeline layout needs.
Structural Diagram
| 1 | Pressure Plug | 7 | Shaft |
| 2 | Vent Valve | 8 | Combined Base |
| 3 | Impeller | 9 | Impeller Nut |
| 4 | Mechanical Seal | 10 | Pump Body |
| 5 | Air Deflector | 11 | Drain Valve |
| 6 | Motor |
Structural Description of ISG Type:
a.The pump and motor share the same end cover, reducing axial dimensions and simplifying the structure.
b.The pump casing is equipped with pressure tapping holes and drain holes.
c.A vent valve is installed on the pump casing to release trapped air before operation.
d.The base of the pump casing features mounting plates and bolt holes to ensure stable installation of the entire unit.
Others
It features a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Details
Chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
Details
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
Details
Chemical centrifugal force pump, with simple structure, converts rotational energy into hydrodynamic energy to transport various liquids. Widely used in multiple industries, it is energy-saving, durable, and has a long service life.
Details
The CDL/CDLF vertical multistage centrifugal pump features stainless steel construction for corrosion resistance, high efficiency, and quiet operation. Ideal for water supply, pressure boosting, and industrial applications with compact design and reliable performance.
Details
The CQB Stainless Steel Magnetic Drive Centrifugal Pump is reliable, corrosion-resistant, and ideal for chemical, pharmaceutical industries.
Details
The FB single - stage single - suction cantilever corrosion - resistant centrifugal pump is engineered with precision. It has high durability and excels in handling corrosive liquids, being a reliable fluid - handling choice.
Details
The FP-type Reinforced Polypropylene Centrifugal Pump offers excellent chemical resistance and durability for harsh fluids. Its sturdy design ensures efficient, leak-proof operation in industrial and chemical applications.
Details
