Durable, efficient pump designed for heavy-duty sewage drainage. Handles solids effortlessly with anti-clogging technology. Ideal for industrial, municipal, and construction applications. Reliable, low-maintenance performance.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Cast iron/Stainless steel
Product Features

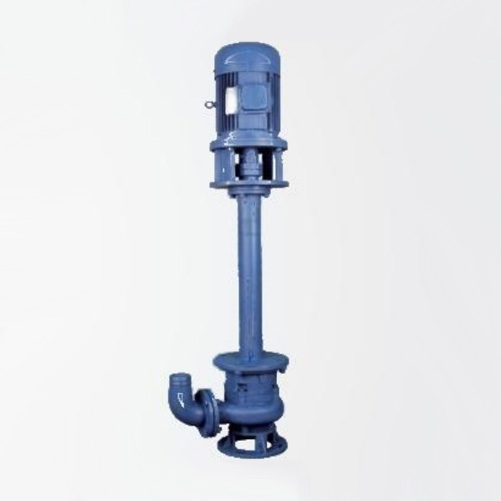

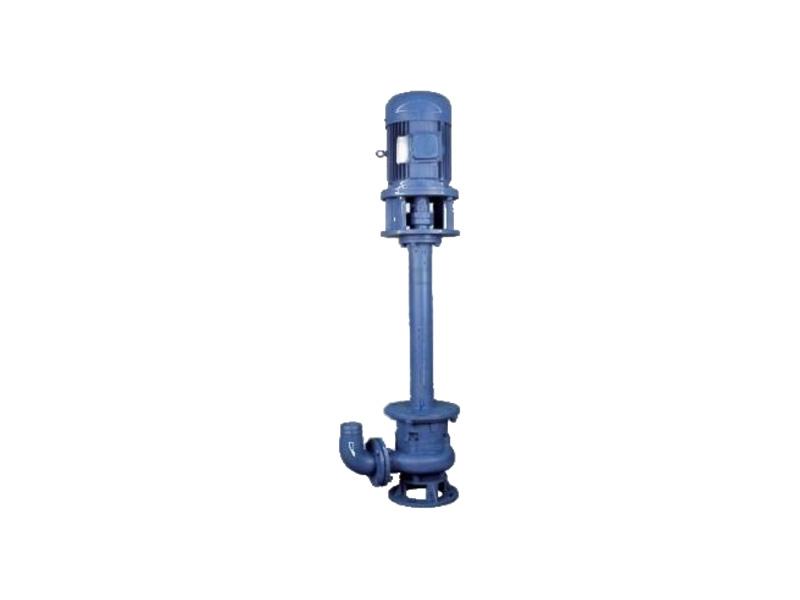

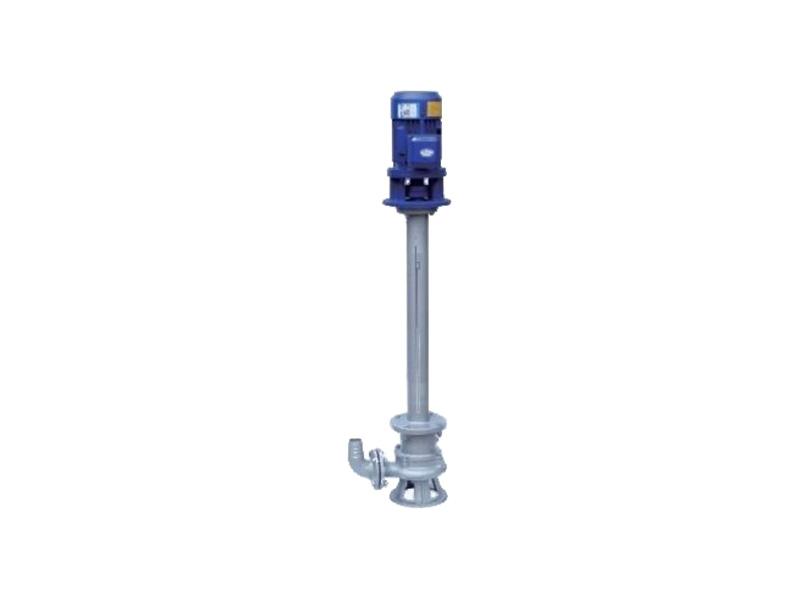

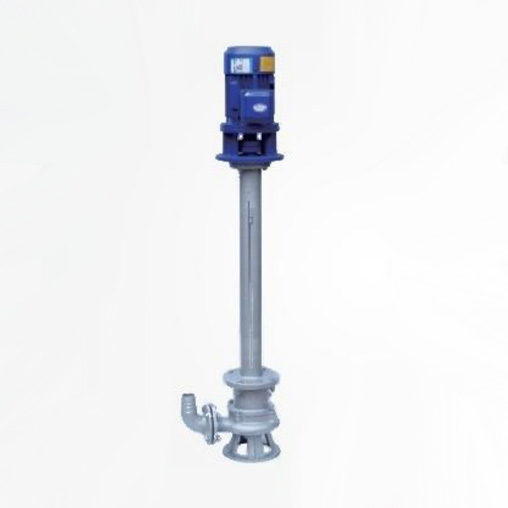

YW non clogging single tube submersible sewage pump can be equipped with an automatic liquid level control panel, which can start/stop operation according to liquid level changes - without manual supervision. Its vertical design allows for easy soaking (0.5-7 meters) and safe operation. The front axle connection ensures smooth operation and overload protection protects the engine. Support the use of circular or square mounting plates to install single/double pipes.
Product Overview
The YW Non-Clogging Single-Pipe Submersible Sewage Pump is designed for efficient wastewater and sludge drainage. Its advanced anti-clogging impeller handles solids and fibrous materials effortlessly. Built with durable cast iron and corrosion-resistant materials, it ensures reliable performance in harsh environments. Ideal for municipal, industrial, and agricultural applications, this pump offers high flow rates, energy efficiency, and easy maintenance. Compact and submersible, it operates quietly with minimal vibration. Perfect for sewage systems, stormwater drainage, and wastewater treatment plants. Trust YW for durable, high-performance pumping solutions.

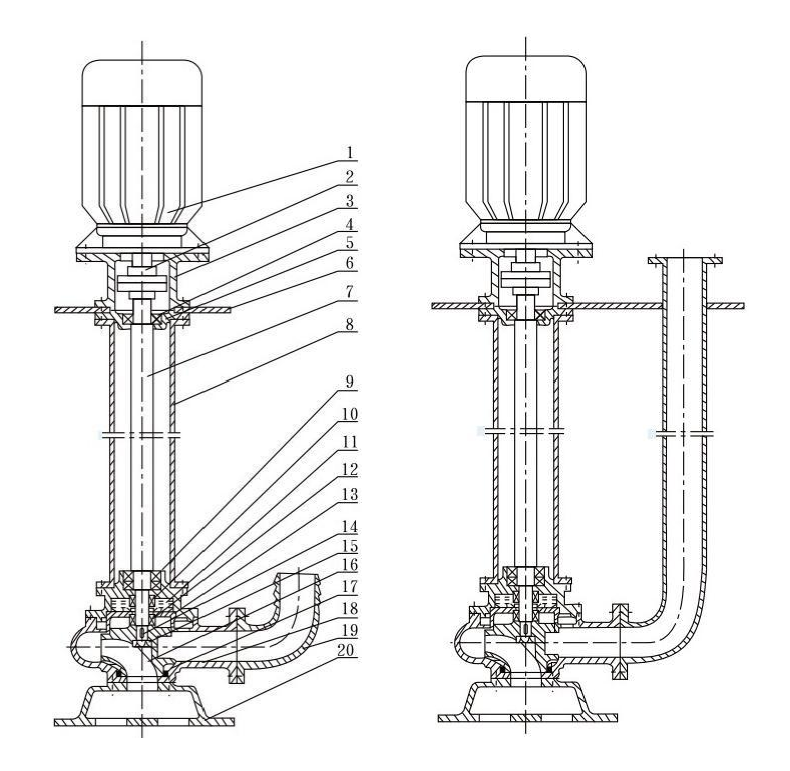

Structural Description
| 1 | Motor |
| 2 | Coupling |
| 3 | Motor Mount |
| 4 | Upper Bearing |
| 5 | Upper Bearing Housing |
| 6 | Mounting Flange |
| 7 | Extension Shaft |
| 8 | Support Tube |
| 9 | Lower Bearing |
| 10 | Upper Mechanical Seal |
| 11 | Oil Chamber |
| 12 | Mechanical Seal |
| 13 | Rear Cover Plate |
| 14 | Key |
| 15 | Impeller Nut |
| 16 | Impeller |
| 17 | Seal Ring |
| 18 | Pump Casing |
| 19 | Discharge Pipe |
| 20 | Base Plate |
