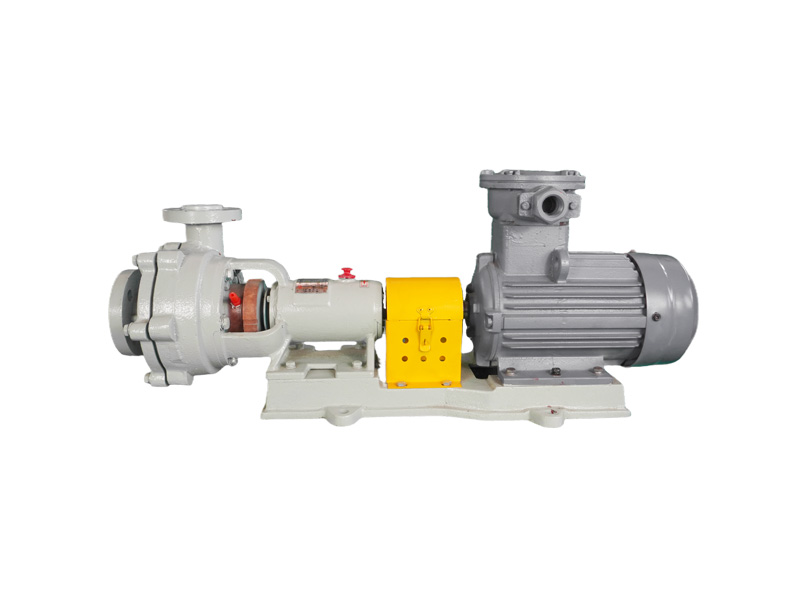

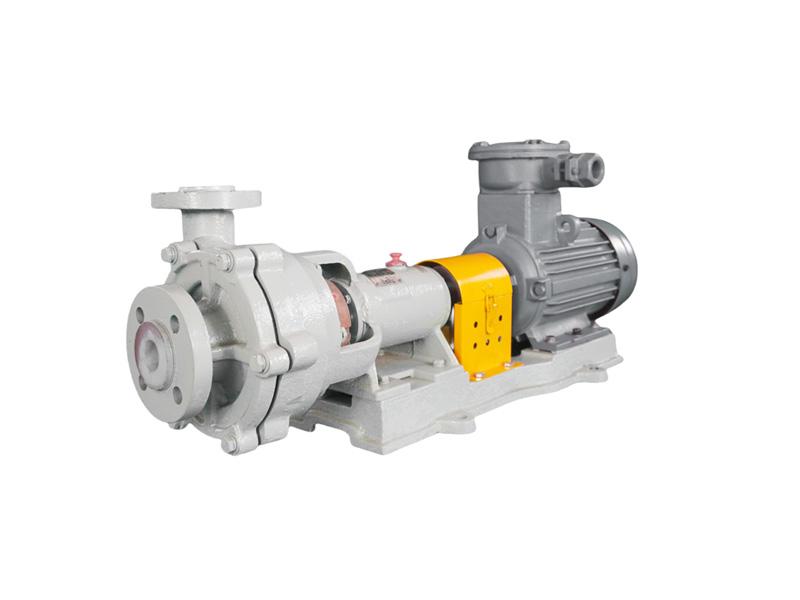

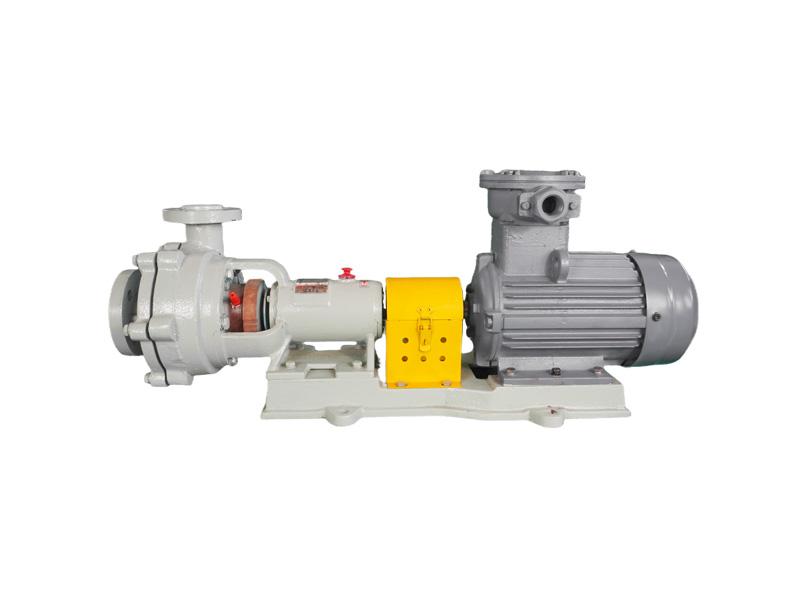

TMU-ZK Cantilever Single-Stage Mortar Centrifugal Pump delivers robust, maintenance-free performance for abrasive slurries in mining, construction, and industrial applications.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Cast iron/Stainless steel
Application Area
This product is widely applicable for liquids such as acids, alkalis, salts, oils, food and beverages, alcoholic products, organic solvents, etc. It is particularly suitable for conveying highly corrosive liquids containing fine particles.
Product Features
The TMU-ZK series is a cantilever-type single-stage centrifugal slurry pump featuring UHMWPE-lined wetted components for exceptional corrosion/wear resistance and anti-creep properties, reinforced with metal for enhanced pressure capacity. Designed for versatility, it handles acidic/alkaline liquids, corrosive ore slurries, dilute acids, and wastewater across industries like metallurgy and chemical processing. The pump offers four sealing options: K-type dynamic seal for basic applications, single mechanical seal for standard use, cartridge seal for easy maintenance, and double mechanical seal for hazardous conditions. This adaptable design ensures optimal performance in diverse operating environments while maintaining durability and reliability in demanding slurry pumping applications.

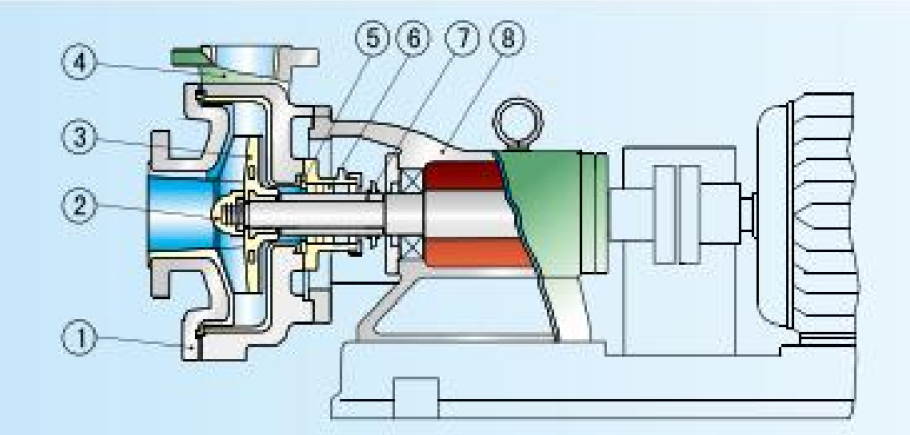

Structural Description
| 1 | Pump Cover | HT200/UHMWPE |
| 2 | Impeller Nut | WCB/UHMWPE |
| 3 | Impeller | WCB/UHMWPE |
| 4 | Pump Casing | HT200/UHMWPE |
| 5 | Gasket | UHMWPE |
| 6 | Shaft Seal | Fluororubber |
| 7 | Shaft Sleeve | Silicon Carbide |
| 8 | Bracket | HT200 |
1.Low-Power Structure (for models with diameter ≤200mm):
(1) Features a bracket-type design—the pump body has no feet, sharing a common base with the motor.
(2) Bearing lubrication:
a.Diameter ≤125mm: Grease-lubricated bearings (no additional oil required).
b.Diameter >125mm: Oil-lubricated bearings (requires ISO 46# oil in the bearing housing).
2.High-Power Structure (for models with diameter ≥250mm):
(1) Features a suspended-type design—the pump body includes feet and shares a base with the motor.
(2) Bearing lubrication:Oil-lubricated bearings (requires ISO 46# oil in the bearing housing).
3.Sealing Options:
(1) The mortar pump series supports customized sealing configurations.
(2) Standard default: K-type dynamic oil seal (unless otherwise specified).
Others
It features a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
