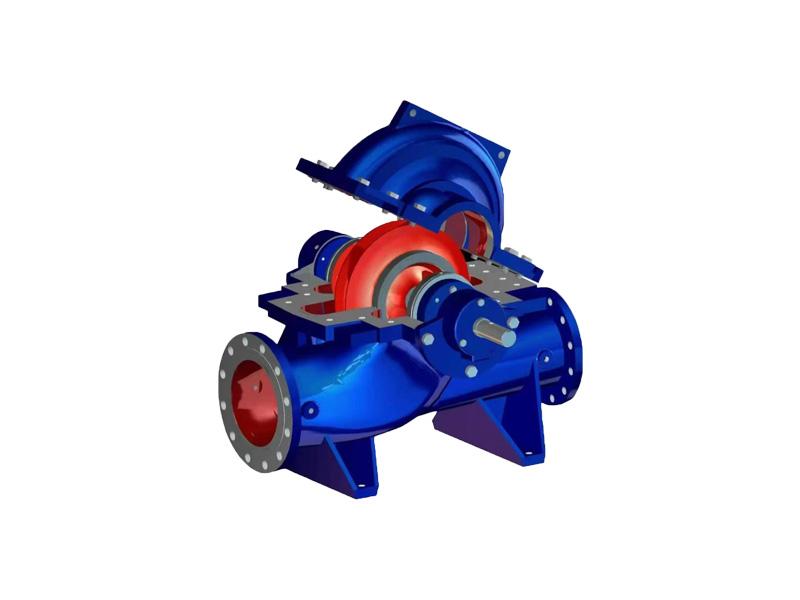

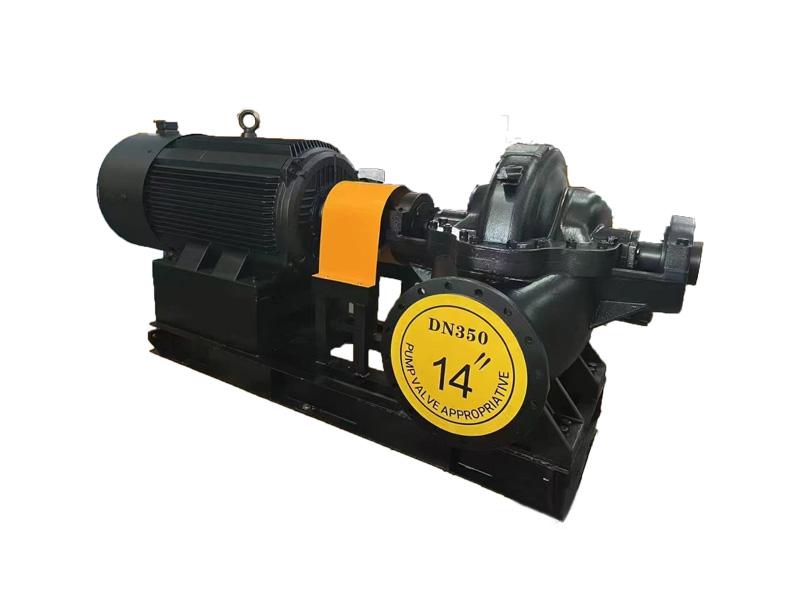

S & SH-type single-stage double-suction centrifugal pumps feature high efficiency, balanced axial thrust, and robust construction for large-flow industrial and municipal applications.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Cast iron/Stainless steel
Product Overview
The SH type pump is a single-stage, double-suction, split-case centrifugal pump, used for pumping clean water and liquids with physical and chemical properties similar to water. For this type of pump, when the head ranges from 9 meters to 140 meters, the flow rate is 126 cubic meters per hour to 12,500 cubic meters per hour. The maximum temperature of the liquid must not exceed 80°C. It is suitable for factories, mines, urban water supply, power stations, large-scale water conservancy projects, farmland irrigation, drainage and waterlogging control, etc. The 48SH-22 large-scale pump can also be used as a thermal power plant circulating pump.
Product Features
Both the suction port and discharge port of S and SH type pumps are located below the pump's axis, in a horizontal direction and perpendicular to the axis. The pump cover is fixed to the pump body with double-ended bolts and conical set screws, which allows easy access to inspect all internal parts of the pump. There is no need to disassemble the inlet and outlet pipelines or the motor, making maintenance extremely convenient. When viewed from the drive direction, all SH type pumps rotate counter clockwise; all S type pumps rotate clockwise.

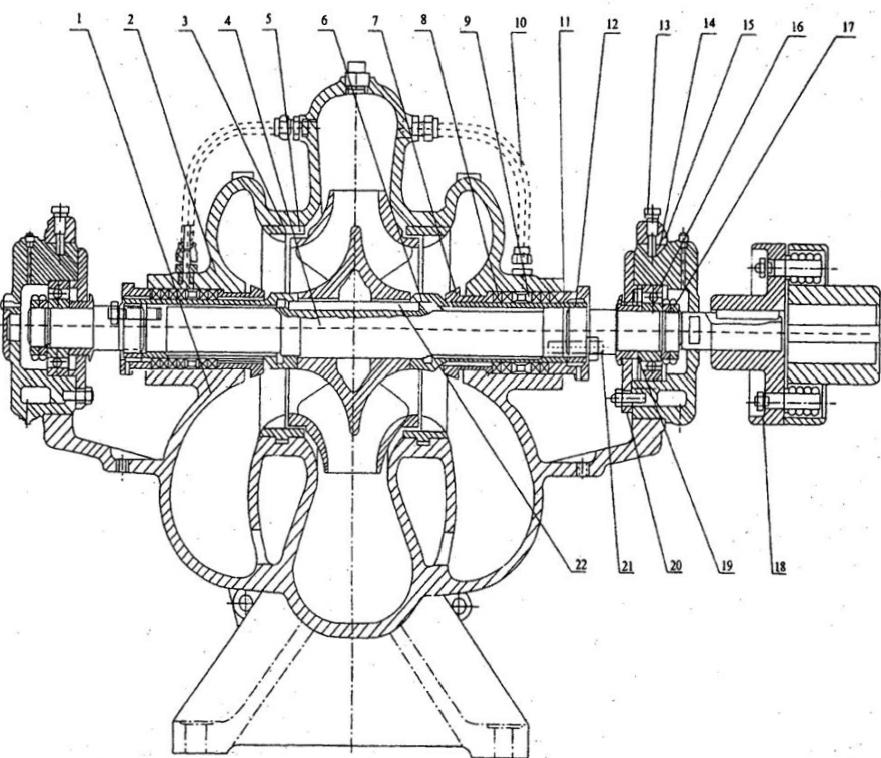

Structural Description
| 1 | Pump body |
| 2 | Pump cover |
| 3 | Impeller |
| 4 | Shaft |
| 5 | Double-suction seal ring |
| 6 | Shaft sleeve |
| 7 | Packing bag |
| 8 | Packing |
| 9 | Lantern ring |
| 10 | Water seal pipe |
| 11 | Gland (for packing) |
| 12 | Shaft sleeve nut |
| 13 | Set screw |
| 14 | Bearing housing |
| 15 | Bearing housing gland |
| 16 | Single-row radial ball bearing |
| 17 | Round nut |
| 18 | Coupling components |
| 19 | Bearing sleeve stop |
| 20 | Bearing end cap |
| 21 | Key |
| 22 | Stud bolt |
