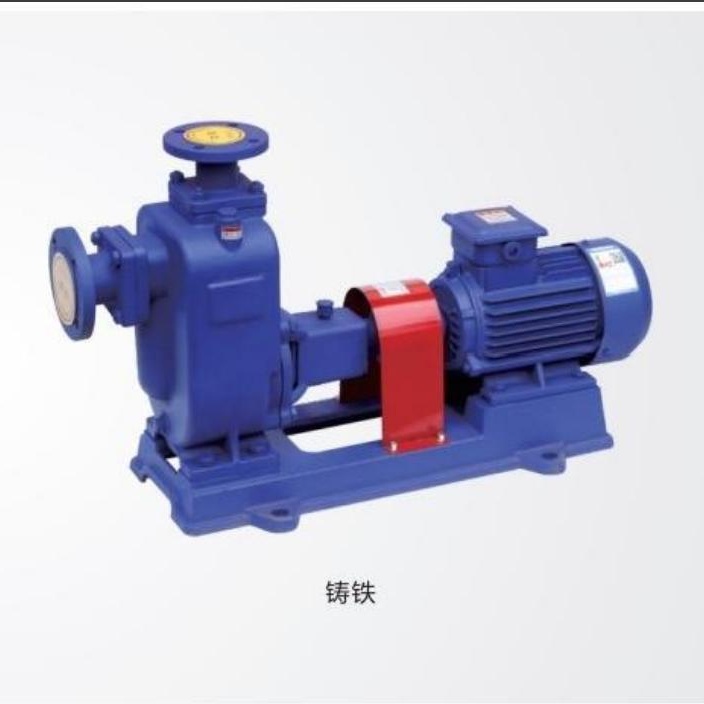

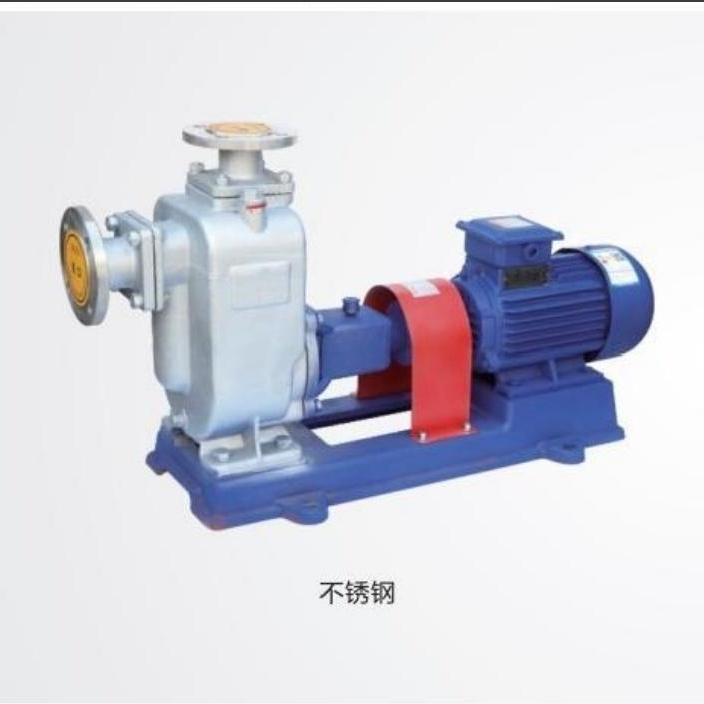

The ZW series self-priming non-clogging sewage pump is a newly structured product successfully developed on the basis of repeated research on similar domestic and foreign technologies.
Payment:
TT L/C PayPal Westunion MoneygramMOQ:
1Package:
wooden caseColor:
customizedMaterial:
stainless steelWorking Temp:
≤50℃Working Pressure:
Product overview
This pump integrates suction and non-clogging sewage discharge. It adopts an axial reflux external mixing type. Through the unique design of the pump body and impeller flow passage, it can, just like a general self-priming clean water pump, operate without the need to install valves and prime with water. Moreover, it can suck and discharge liquids containing large particles and long fiber impurities. It can be widely used in municipal sewage disposal projects, aquaculture, light industry, papermaking, textile, food, chemical industry, electric power fiber, pulp and mixed suspension and other chemical medium impurity pumps.
Product advantages
Compared with similar domestic products, this pump features simple structure, good self-priming performance, strong sewage discharge capacity, high efficiency and energy conservation, as well as convenient operation and maintenance. It is the first of its kind in China among sewage discharge pump series. All its technical performance indicators are leading in China and reach the international advanced level, thus having broad application markets and development prospects.

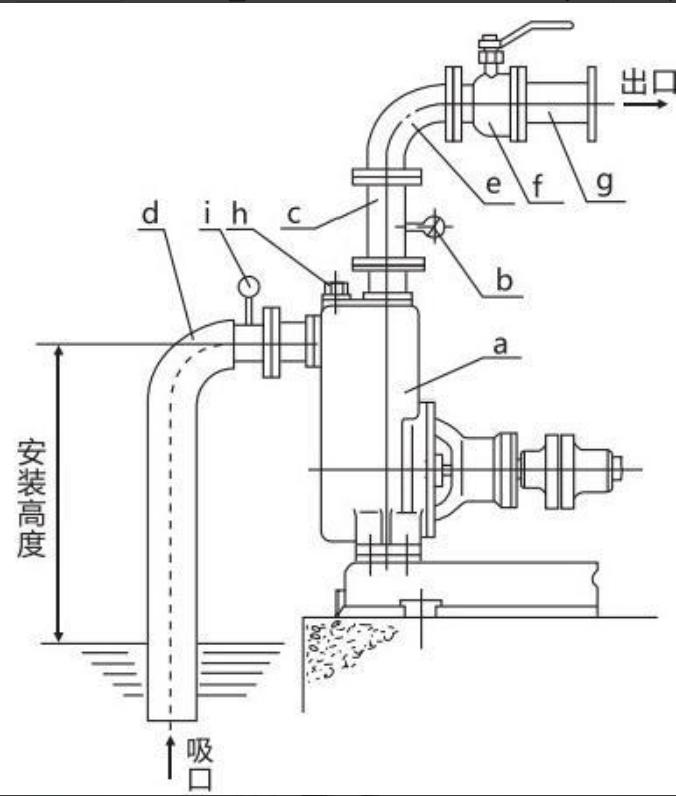

Structural diagram
| a | Pump |
| b | Pressure gauge |
| c | Outlet vertical pipe |
| d | Suction hard pipe |
| e | Elbow |
| f | Flow control valve |
| g | Outlet pipeline |
| h | Liquid filling plug |
| i | Vacuum gauge |

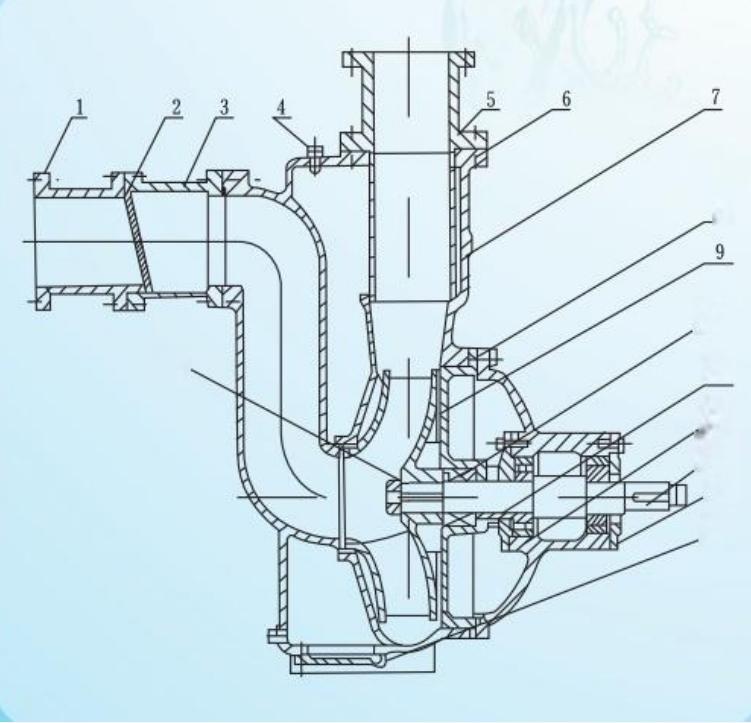

| 1. Inlet connection pipe |
| 2. Inlet flange |
| 3. Inlet valve seat |
| 4. Water filling valve |
| 5. Outlet connection pipe |
| 6. Pump body |
| 7. Gas-liquid separation pipe |
| 8. Rear cover |
| 9. Impeller |
| 10. Mechanical seal |
| 11. Water deflector ring |
| 12. Bearing seat |
| 13. Pump shaft |
| 14. Bearing |
| 15. Bottom cover plate |
| 16. Impeller nut |
