New Round Block Hole Graphite Falling Film Absorber

New Round Block Hole Graphite Falling Film Absorber

The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.

  • Payment:

    TT L/C PayPal Westunion Moneygram
  • Product Origin:

    China, Anhui province
  • Shipping Port:

    Shanghai
  • Lead Time:

    1 Month
  • MOQ:

    1
  • Package:

    Wooden case
  • Color:

    customzied
  • Material:

    Graphite
  • Working Temp:

    ≤170℃
  • Working Pressure:

    Vertical≤0.1Mpa,Horizontal≤0.4Mpa



Product review

The structure represents a modified version of the YKX graphite falling film absorber. The absorption heat exchange element features a structure without a central through hole. It is characterized by its compactness, relatively high material utilization rate, and is a gas absorption equipment with outstanding performance.



Product advantages

The New Round Block Hole Graphite Falling Film Absorber provides outstanding corrosion resistance, high thermal conductivity, efficient gas absorption capabilities, durability, and improved heat transfer performance.

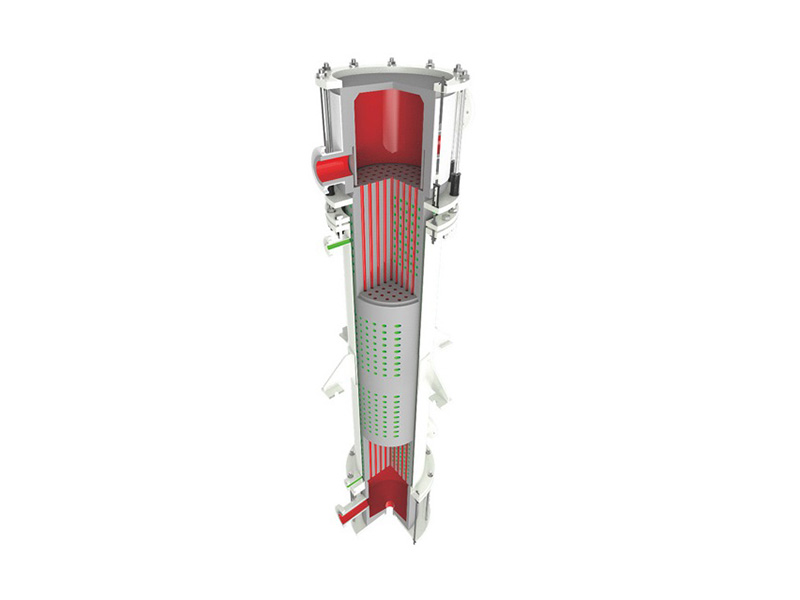

Structural diagram





Parts details
1 Air inlet
2 Graphite gas-liquid mixing chamber
3 Liquid inlet
4 Graphite pressure stabilizing ring
5 Graphite distribution head
6 Vent
7 Cooling water outlet
8 Equipment support
9 Graphite heat exchange block
10 Cooling water inlet
11 Drain port
12 Gas liquid separation chamber
13 Tail gas outlet
14 Acid outlet





Drawing Specification Table for Tube

Model a.e Tube b.c Tube
DN
f.g Tube
DN
d Tube h Tube
D1 D2 D3 D4 D5 D6
KXG40 65 160 50 20 150 295 75 180
KXG50 75 180 65 20 200 350 100 210
KXG60 100 210 80 20 250 400 125 240
KXG70 100 210 100 25 250 400 200 350
KXG80 125 240 100 25 300 460 250 400
KXG90 125 240 150 25 300 460 250 400
