The FSB fluoroplastic alloy centrifugal pump offers superior corrosion resistance, high durability, and efficient performance for handling aggressive chemicals, acids, and solvents in demanding industrial applications.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
Fluoroplastic/Alloy
Fluoroplastic alloy is currently the most excellent corrosion-resistant material in the world. Our company uses this material to produce FSB and FSB-D series pumps. These pumps have extremely strong corrosion resistance, high mechanical strength, do not age, and do not decompose toxins. They can transport acid, alkali solutions, oxidants, and other corrosive media of any concentration. Therefore, they are widely applicable in industries such as chemical engineering, petroleum, pharmaceuticals, pesticides, metallurgy, dyes, papermaking, electroplating, and food.
Product Overview

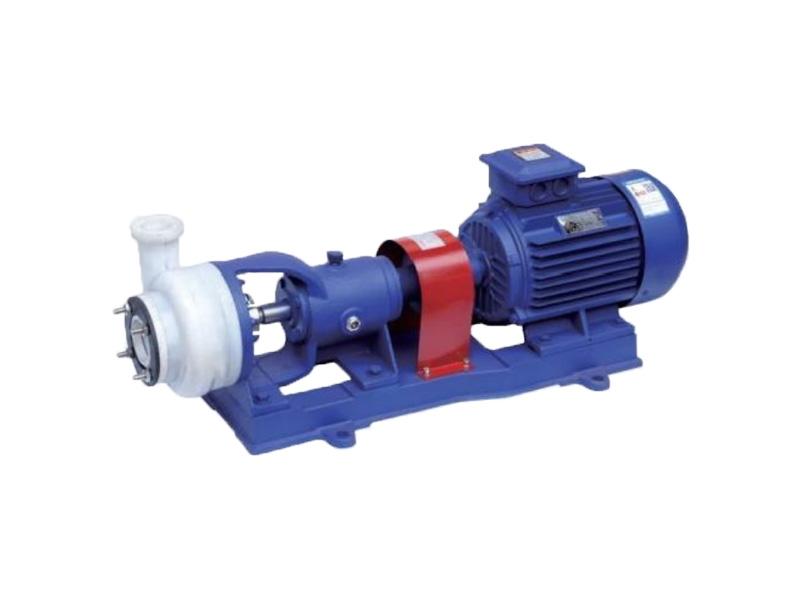

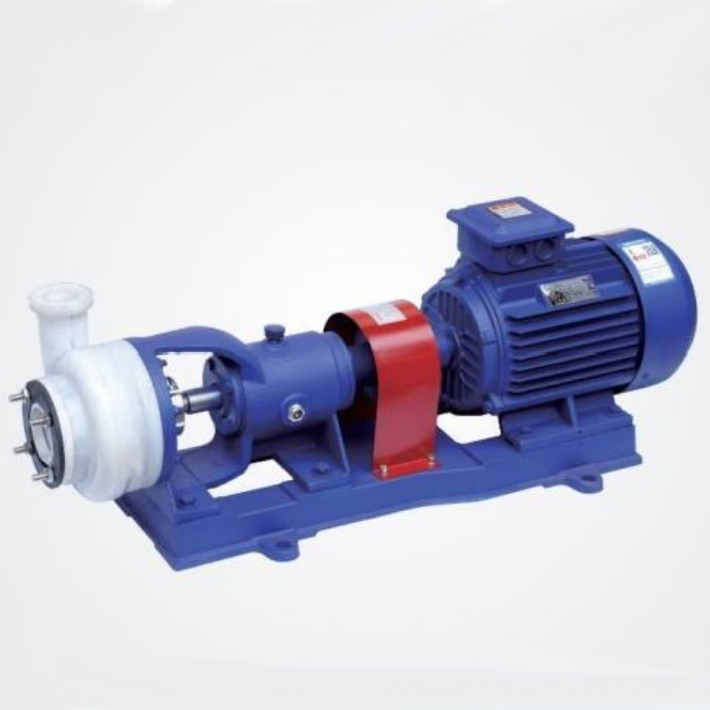

The FSB Fluoroplastic Alloy Centrifugal Pump offers superior corrosion resistance, handling aggressive chemicals with high efficiency. Its durable design ensures reliable performance in demanding industrial applications.
Performance specification
| Type | Flow Rate (m³/h) | Head (m) | Diameter | Motor Power (kW) | Speed (rpm) | Suction Lift (m) | Efficiency (%) | |
| Inlet Diameter (mm) | Outlet Diameter (mm) | |||||||
| 25FSB-10 | 1.5 | 10 | 25 | 25 | 1.2 | 2900 | 6 | 27 |
| 25FSB-18 | 3.6 | 18 | 25 | 25 | 2.2 | 2900 | 6 | 29 |
| 40FSB-15 | 5 | 15 | 40 | 32 | 3 | 2900 | 6 | 40 |
| 40FSB-20 | 10 | 20 | 40 | 32 | 4 | 2900 | 6 | 42 |
| 40FSB-30 | 10 | 30 | 40 | 32 | 4 | 2900 | 6 | 38 |
| 40FSB-40 | 10 | 40 | 40 | 32 | 5.5 | 2900 | 5.5 | 35 |
| 40FSB-50 | 10 | 50 | 40 | 32 | 7.5 | 2900 | 5.5 | 33 |
| 50FSB-20 | 15 | 20 | 50 | 40 | 4 | 2900 | 8 | 51 |
| 50FSB-25 | 15 | 25 | 50 | 40 | 4 | 2900 | 8 | 49 |
| 50FSB-30 | 15 | 30 | 50 | 40 | 4 | 2900 | 8 | 44.5 |
| 50FSB-40 | 15 | 40 | 50 | 40 | 5.5-7.5 | 2900 | 5.5 | 35 |
| 50FSB-50 | 15 | 50 | 50 | 40 | 7.5-11 | 2900 | 5.5 | 33 |
| 65FSB-32 | 25 | 32 | 65 | 32 | 5.5 | 2900 | 6 | 57 |
| 65FSB-40 | 29 | 40 | 65 | 40 | 11 | 2900 | 5.5 | 53 |
| 65FSB-50 | 29 | 50 | 65 | 40 | 11 | 2900 | 5.5 | 46 |
| 65FSB-64 | 50 | 64 | 65 | 50 | 15-18.5 | 2900 | 5.5 | 53 |
| 80FSB-20 | 50 | 20 | 80 | 65 | 5.5 | 2900 | 6 | 89 |
| 80FSB-30 | 50 | 30 | 80 | 65 | 7.5 | 2900 | 5.5 | 64 |
| 80FSB-34 | 50 | 34 | 80 | 65 | 11 | 2900 | 5.5 | 64 |
| 80FSB-40 | 50 | 40 | 80 | 65 | 11-15 | 2900 | 5.5 | 60 |
| 80FSB-50 | 50 | 50 | 80 | 50 | 15-18.5 | 2900 | 6 | 53 |
| 80FSB-55 | 50 | 55 | 80 | 50 | 15-18.5 | 2900 | 5.5 | 47 |
| 80FSB-80 | 50 | 80 | 80 | 50 | 30-37 | 2900 | 5.5 | 38 |
| 100FSB-32 | 100 | 32 | 100 | 80 | 18.5-22 | 2900 | 5.5 | 70 |
| 100FSB-40 | 100 | 40 | 100 | 80 | 18.5-22 | 2900 | 5.5 | 70 |
| 100FSB-50 | 100 | 50 | 100 | 65 | 22-30 | 2900 | 5.5 | 62 |
Others
It features a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Details
Chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
Details
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
Details
Chemical centrifugal force pump, with simple structure, converts rotational energy into hydrodynamic energy to transport various liquids. Widely used in multiple industries, it is energy-saving, durable, and has a long service life.
Details
The CDL/CDLF vertical multistage centrifugal pump features stainless steel construction for corrosion resistance, high efficiency, and quiet operation. Ideal for water supply, pressure boosting, and industrial applications with compact design and reliable performance.
Details
The CQB Stainless Steel Magnetic Drive Centrifugal Pump is reliable, corrosion-resistant, and ideal for chemical, pharmaceutical industries.
Details
The FB single - stage single - suction cantilever corrosion - resistant centrifugal pump is engineered with precision. It has high durability and excels in handling corrosive liquids, being a reliable fluid - handling choice.
Details
The FP-type Reinforced Polypropylene Centrifugal Pump offers excellent chemical resistance and durability for harsh fluids. Its sturdy design ensures efficient, leak-proof operation in industrial and chemical applications.
Details
